Angle Bead Mesh Machine: The Complete Guide for Manufacturers & Builders
2026-03-27
For construction professionals and material manufacturers seeking efficiency, precision, and durability, the Angle Bead Mesh Machine (also widely known as a corner bead roll forming machine) is an indispensable piece of industrial equipment. This comprehensive guide explores everything you need to know about this specialized machinery, from its core function and technical specifications to its critical role in modern construction.
What is an Angle Bead Mesh Machine?

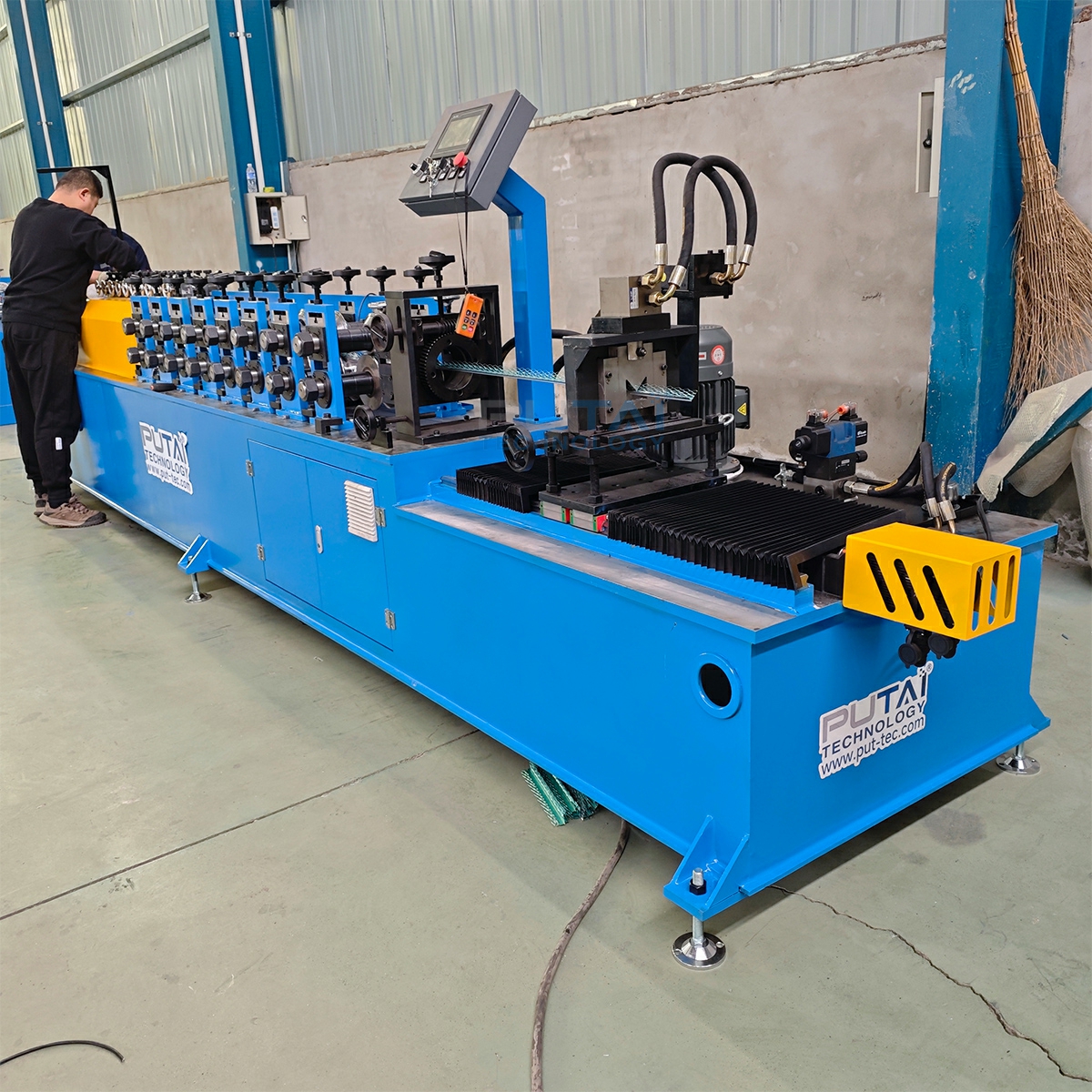

An Angle Bead Mesh Machine is a fully automated production line designed for the continuous, high-volume manufacturing of metal corner beads with integrated expanded metal mesh. These corner beads are essential reinforcement profiles used to create strong, straight, and crack-resistant corners in drywall, plaster, stucco, and External Insulation and Finish Systems (EIFS).
How Does a Corner Bead Roll Forming Machine Work?
The operation is a seamless, automated process:
-
Uncoiling: A coil of galvanized steel, stainless steel, or aluminum strip is loaded onto a decoiler.
-
Punching & Mesh Forming: The metal strip passes through a punching station that creates the pattern for the expanded metal lath or mesh.
-

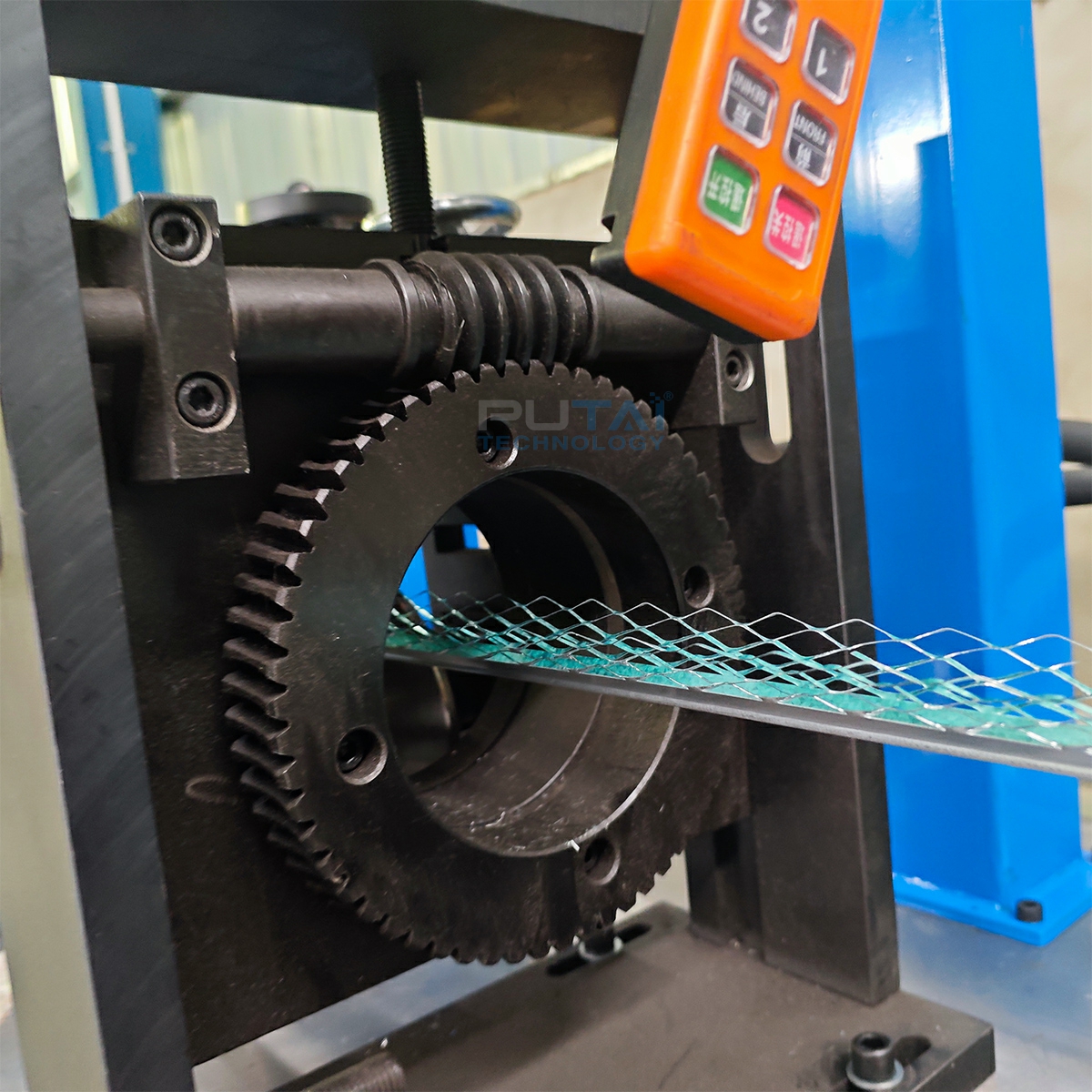

Roll Forming: The heart of the machine. The strip then travels through a series of precision-engineered roller dies (typically 10-20 stations) that progressively bend it into a perfect 90-degree "L" or "V" angle profile.
-
Cutting: A hydraulic or servo cutting system accurately shears the continuously formed profile into preset lengths (commonly 2.4m or 3m).
