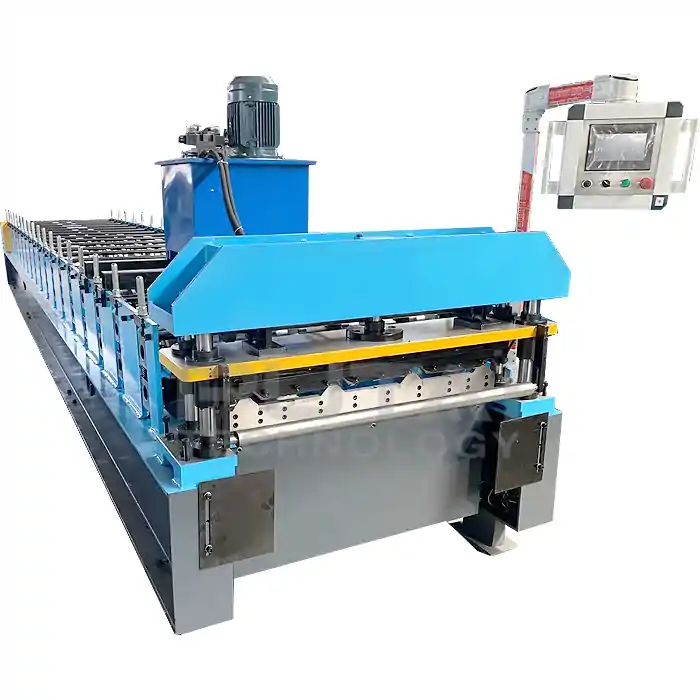

roofing metal roll forming machine

single layer steel roofing making machine

roofing metal roll forming machine/metal forming machine/cold former

roofing stacker roll forming machine with stacker for metal roofing this machine has a simple structure, fewer parts, less floor space, strong applicability, low energy consumption, all controls can be operated on the screen of the control cabinet, only need to locate the starting point and the placing point.

850

Quantity:

roofing metal roll forming machine/metal forming machine/cold former

roofing metal roll forming machine/metal forming machine/cold former details

1	machine structure	cast iron roller fixer
2	Main power	5KW siemens motor
3	Forming stations	12 stands
4	Way of drive	high-quality gear drive
5	Diameter of shaft	70mm
6	Max rolling speed	20-25m/min
7	Thickness	0.3-0.5mm galvanized steel or prepainted sheet
8	Material width	according drawing
9	Material of roller	Cr12
10	Material of blade mold	Cr12, quenched 58-62
11	Way of cutting	hydraulic mold cutting
12	Length cutting tolerance	+/-1.0mm
13	Hydraulic pressure	16Mpa
14	Hydraulic power	4kw
15	Computer Control system	PLC control Delta
16	Encoder measure	Omron
17	Electrical requirement	380V,50Hz,3Ph
