Technical Parameters

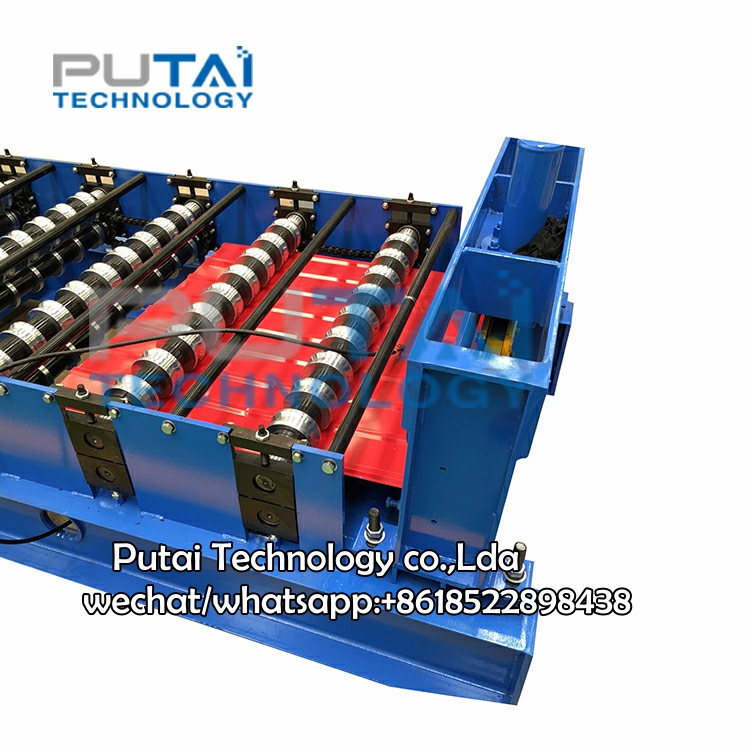

Roller stations		18 rows (or according to the client's requirement)
Shaft Diameter		70mm（or as client requirement)
Middle Plate&

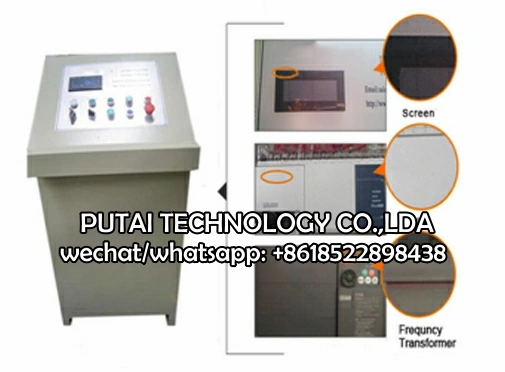

    PLC CONTROL SYSTEM
a.Delta Brand to ensure high speed with stability, precision and lifetime.
b.Other electric element are Panasonic
c.input the speed, length, and pcs, it will
control machine working automaticly.

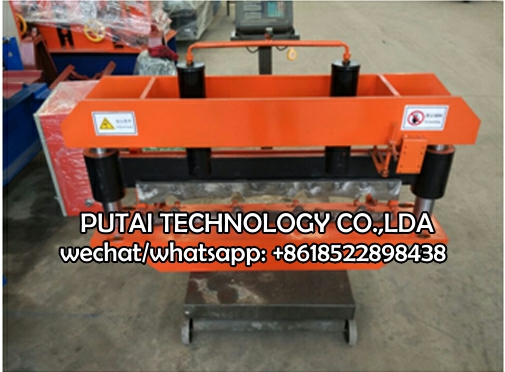

CUTTING SYSTEM
a.Blade Material: CR12
b.Heat Treatment
c.Thick, high wear-resisting knife plate
d.Hydraulic pillar guide cutting

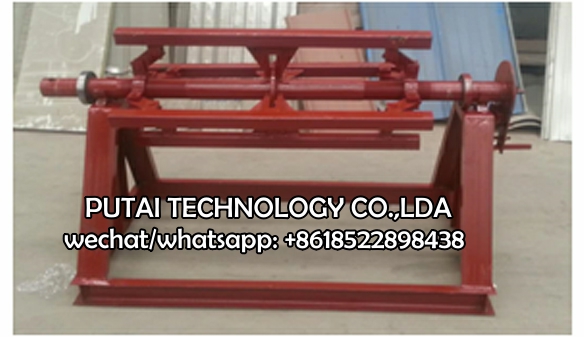

 DECOILER
Max Load Capacity: 5 Ton
Suitable coil width: 1220mm

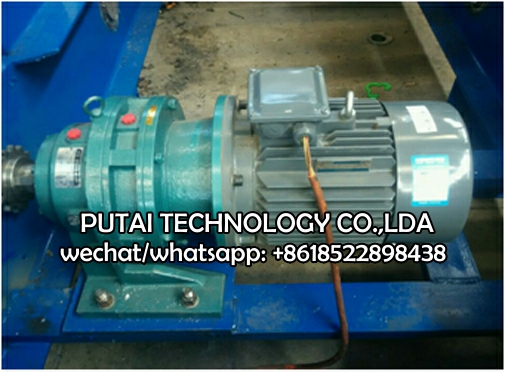

MOTOR



a.Motor with good quality and powerfull.
b.Depends on profile drawing, different profile use different power
c.Fixed at the bottom of the frame or beside

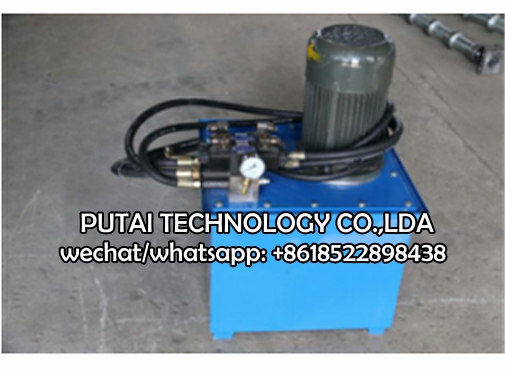

HYDRAULIC SYSTEM

1 - The main valve parts adopt domestic high-quality brand
2 - Oil cylinder and oil pump adopt national standard rod oil cylinder, easy to purchase all over the world.
3 - The motor is national standard copper core, universal around the world

4 - 5.5kw
