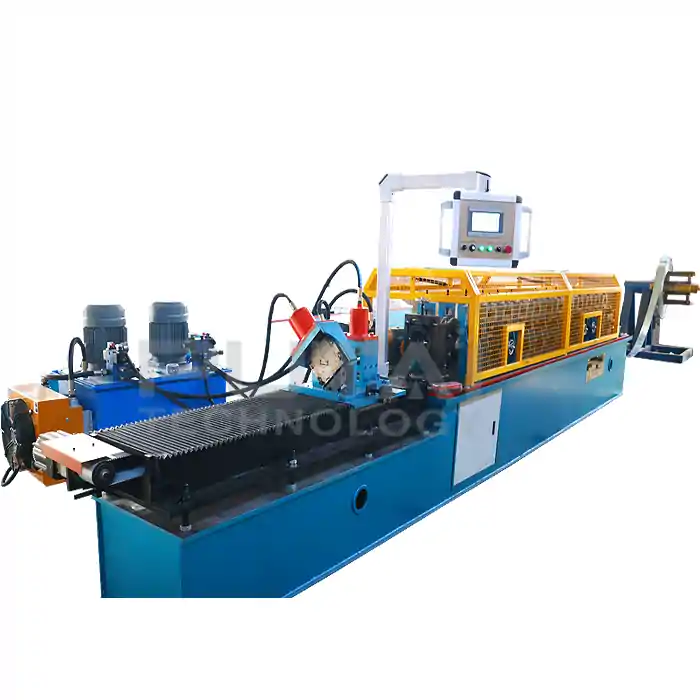

cu channel roll forming machine
Stud and Track roll forminGalvanized light steel Stud and Track drywall pvc profile making machinery
Putai Technology is the leading provider of c/z/u light steel machines. Our machines are designed to deliver maximum efficiency and performance. Our experienced team of engineers is dedicated to producing the finest quality c/z/u light steel machines on the market. We offer a wide range of options and customized solutions to meet your particular needs. Our machines are designed to help you save time, money, and energy while increasing productivity. Putai Technology is the perfect choice for all your c/z/u light steel machine needs.
cuChannel#
Quantity:
cu channel roll forming machine,c u profile purlin making machine,
u-shaped roll forming machine,c/z/u light steel machine,light gauge joist machine


cu channel roll forming machine,c u profile purlin making machine,
u-shaped roll forming machine,c/z/u light steel machine,light gauge joist machine
Product name
cu channel roll forming machine,
c u profile purlin making machine,
u-shaped roll forming machine,
c/z/u light steel machine,
light gauge joist machine
Machine base frame
Machining surface smoothing grinding
Rollers
Stand:12 Rows
Roller's shaft diameter: 50mm
Roller adjustment range: 20mm, up 10mm, down 10mm
Shaft diameter
50mm
upper shaft's length: 430mm
lower shaft's length: 500mm
Steel structure
35mm steel wall plate welded frame, 25mm thickness for desk plate
Total Motor Power
16.8kw
Main Motor Power
7.5kw(K77 series 7.5KW)
Cutting System
Cutting blade material: Cr12, heat treatment HRC58-60
Cut-off type
Servo tracking cutting
Length tolerance
+/-2mm
PLC
DELTA PLC (Taiwan Brand)
Raw material thickness
0.3~0.6mm
Productivity
0-30m/min
Voltage
380v 50hz 3p (or as client requirement)
Drive type
Gear transmission drive,K77 series motor reducer integrated
Gear
Outer diameter Ф 168, thickness 35, teeth, modules 6 (material 40Cr)
Material
Colored steel sheet, galvanized steel sheet, aluminium sheet
Encoder
Omron brand

cu channel roll forming machine,
c u profile purlin making machine,
u-shaped roll forming machine,
c/z/u light steel machine,
light gauge joist machine

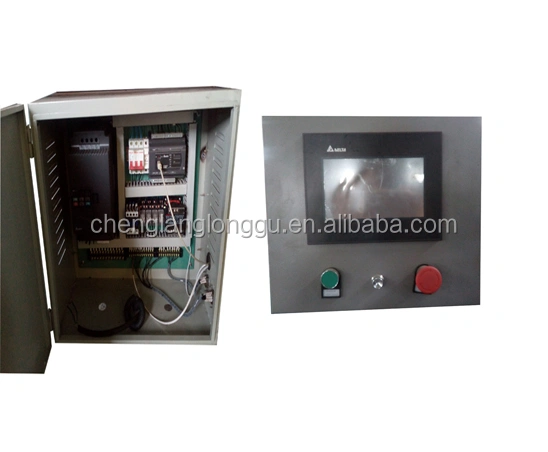

PLC Electric control system
1-Delta PLC to ensure high speed, with stability, precision and lifetime.
2-Other electric element brand for choose
3-Input the length, and pcs, it will control machine working automatically

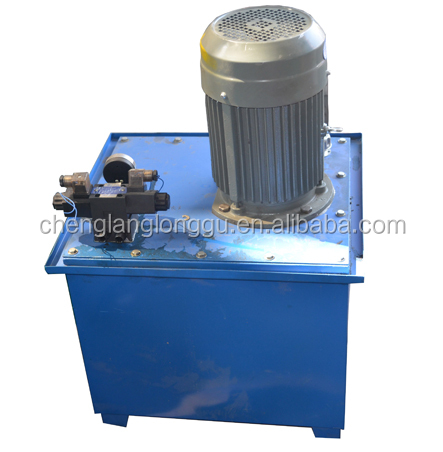

Hydraulic System
1-3.0KW*3
2- Oil cylinder and oil pump adopt national standard rod oil cylinder, easy to purchase all over the world.
3-The motor is national standard copper core, universal around the world

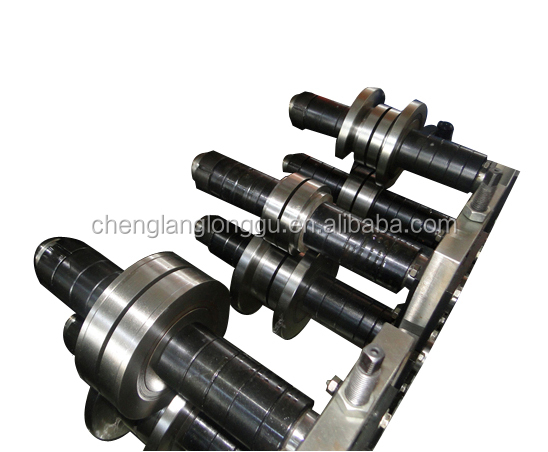

Shaft
1- Material: high grade 40Cr material
2-Forging, lathe finishing, quenching 58-60 ,polishing
3- High precision

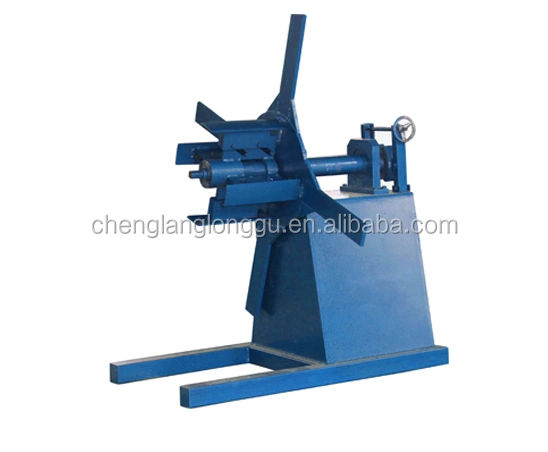

Decoiler
1- Functional Configuration
The worker put coil on the decoiler, and tension it through spanner
2- Technical parameters
Loading capacity：3 Ton
Coil ID：φ450mm~550mm
Coil Width：200mm

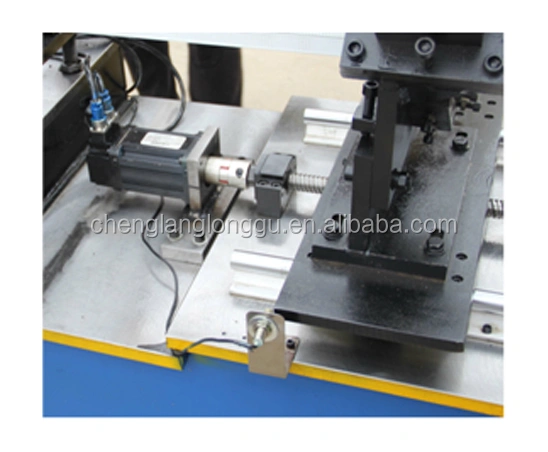

Servo system
1-Hydraulic station
Motor power: 7.5kw+3.0kw*3( sets)
2-Oil cylinder: 100mm diameter (cut) 80 mm diameter (type) 80mm diameter (punch)
3-Servo motor: 2.3kw
4-Knife material: Cr12, heat treatment HRC 58-60, high wear-resisting knife

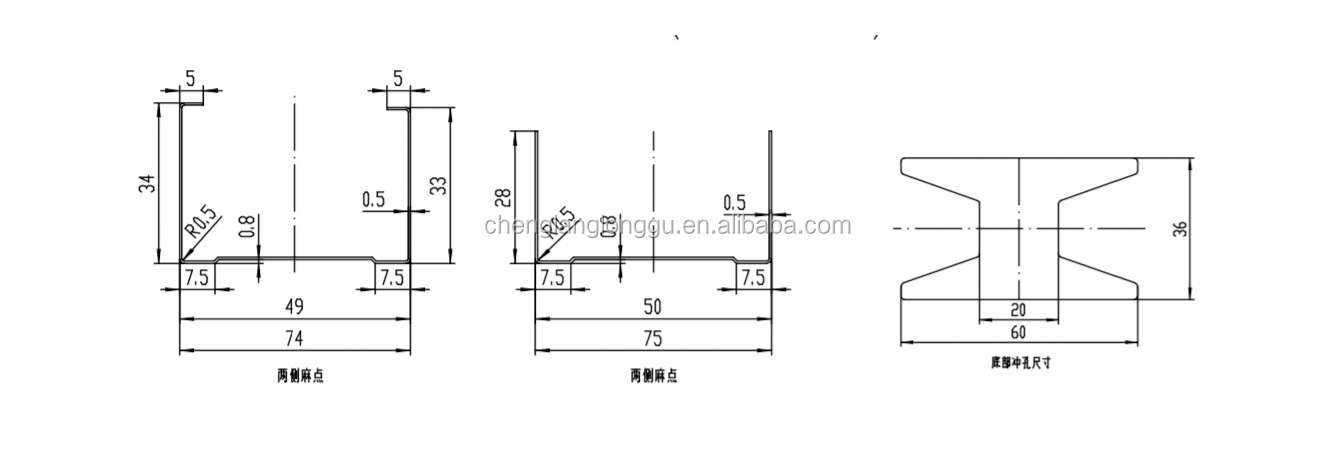

Profile Drawing
Profile drawing (according to client's requirement)

                           cu channel roll forming machine,c u profile purlin making machine,

                  u-shaped roll forming machine,c/z/u light steel machine,light gauge joist machine

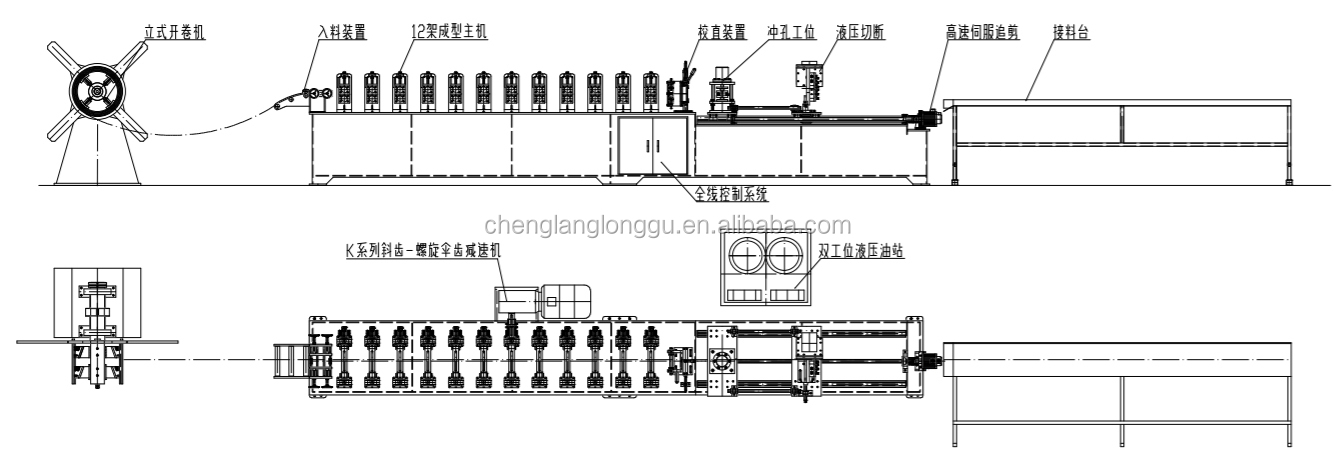

Production Flow
Machine production flow (according to client's requirement )

PROFILES
(cu channel roll forming machine,c u profile purlin making machine,
u-shaped roll forming machine,c/z/u light steel machine,light gauge joist machine)





cu channel roll forming machine,c u profile purlin making machine,
u-shaped roll forming machine,c/z/u light steel machine,light gauge joist machine

cu channel roll forming machine,
c u profile purlin making machine,
u-shaped roll forming machine,
c/z/u light steel machine,
light gauge joist machine
