steel roof making machine

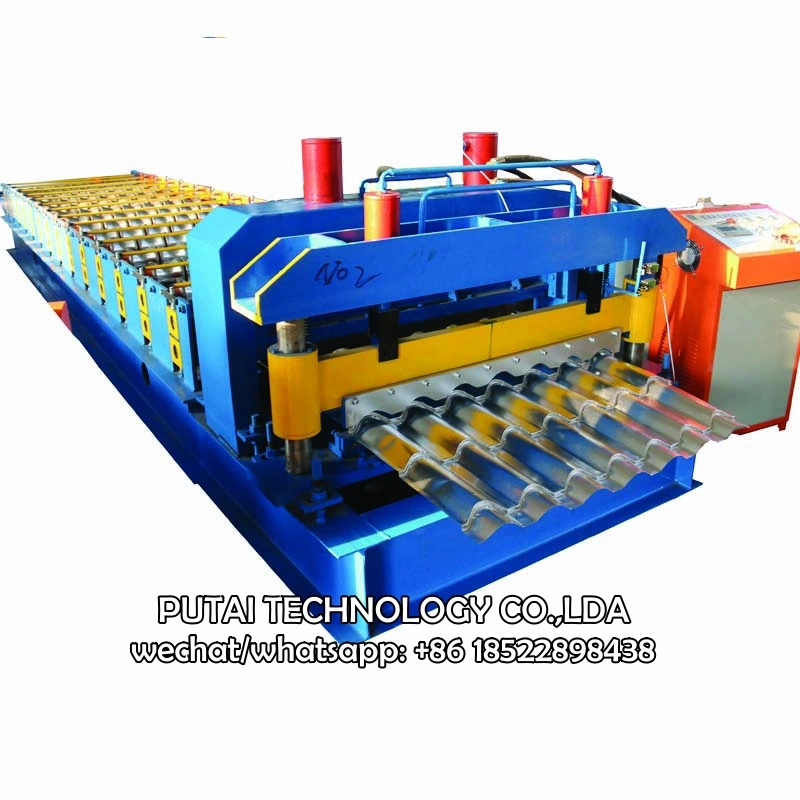

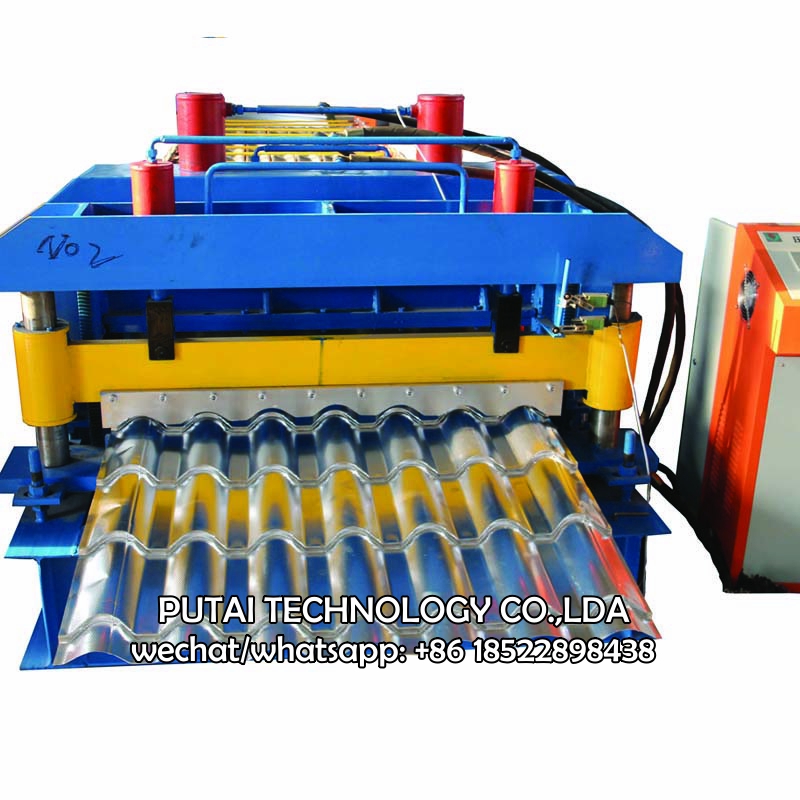

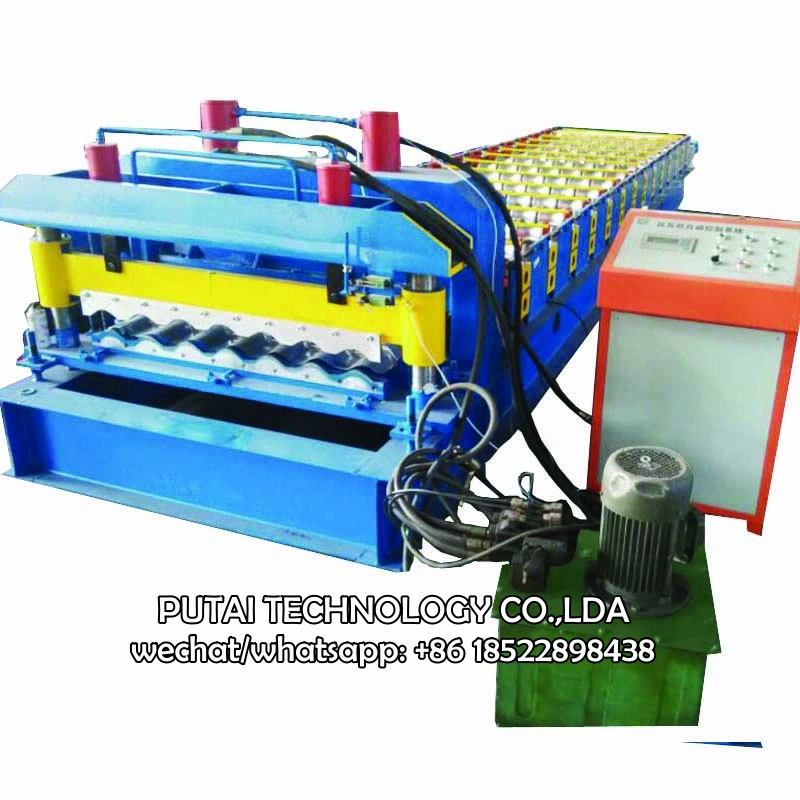

Residential steel roofing panel commercial metal roof tile making machine
Putai Technology provides the best steel roof making machine on the market. Our steel roof making machine is a reliable and cost-effective solution for your business. With the latest technology, our machine is capable of producing high quality steel roofs with precision. It is easy to use and maintain, making it the perfect choice for any business. Our machine is also energy efficient and can help you save money on energy costs. Putai Technology's steel roof making machine is the perfect choice for any business looking for a reliable and cost-effective solution for their roof making needs.
roof#
Quantity:
steel roof making machine,Trapezoid type forming machine,PLC control roof making machine,
Roof machinery,Double layer roof machine


steel roof making machine,Trapezoid type forming machine,PLC control roof making machine,
Roof machinery,Double layer roof machine

steel roof making machine,Trapezoid type forming machine,PLC control roof making machine,
Roof machinery,Double layer roof machine
Product Information
Machine Description / Devide Configuration
Item
Q'ty
Manual Decoiler
1 Set
Guiding Device
1 Set
Main Roll forming Machine
1 Set
Hydraulic Cutting Device
1 Set
PLC electric control system
1 Set
Output Table
1 Set
Technical Parameters
Roller stations
18 rows (or according to client's requirement)
Shaft Diameter
70mm（or as client requirement)
Middle Plate
16mm with Hanging plate Material
Hydraulic drive (Station)
5.5kw
Press and Cutting System
Guide Pillar system;
Cutting blade material: Cr12, heat teatment HRC58-60
Cutt-off Type
Hydraulic guide Pillar Cutting
Length Tolerance
+/- 2mm
PLC
Delta Inverter, DELTA PLC
Raw Material Thickness
0.16~0.5mm, G300~G550
Productivity
20-25m/min
Voltage
380v 50hz 3p
Raw Material Width
1219mm
Material
Colored steel sheet, Galvanized steel sheet, aluminium steel sheet
Chain
1.25 inch
Steel structure
350# H steel
steel roof making machine,Trapezoid type forming machine,PLC control roof making machine,
Roof machinery,Double layer roof machine
Details Images
steel roof making machine,Trapezoid type forming machine,PLC control roof making machine,
Roof machinery,Double layer roof machine
steel roof making machine,Trapezoid type forming machine,PLC control roof making machine,
Roof machinery,Double layer roof machine

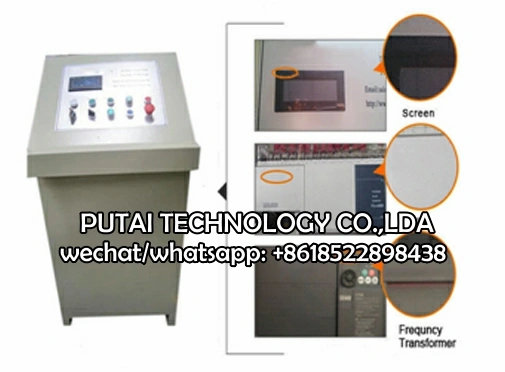

    PLC CONTROL SYSTEM
a.Delta Brand to ensure high speed with stability, precision and lifetime.

b.Other electric element are Panasonic

c.input the speed, length, and pcs, it will

control machine working automaticly.

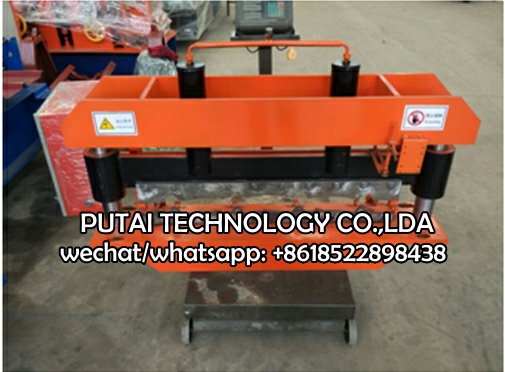

CUTTING SYSTEM
a.Blade Material: CR12
b.Heat Treatment
c.Thick, high wear-resisting knife plate
d.Hydraulic pillar guide cutting

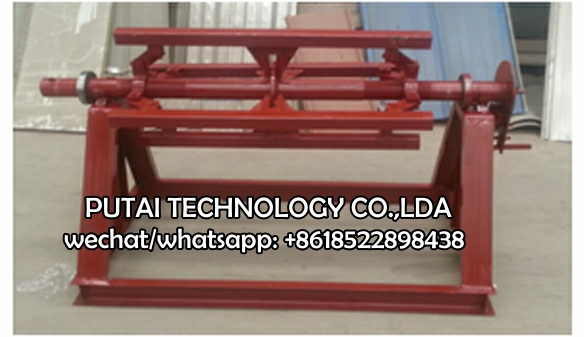

 DECOILER
Max Load Capacity: 5 Ton
Suitable coil width: 1220mm

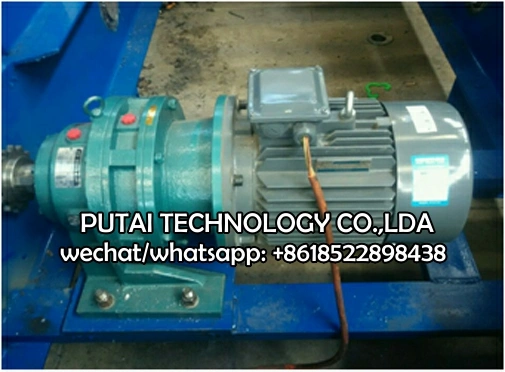

MOTOR
a.Motor with good quality and powerfull.
b.Depends on profile drawing, different profile use different power
c.Fixed at the bottom of the frame or beside

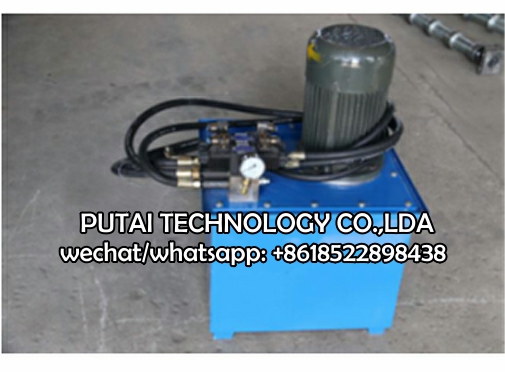

HYDRAULIC SYSTEM
1 - The main valve parts adopt domestic high-quality brand
2 - Oil cylinder and oil pump adopt national standard rod oil cylinder, easy to purchase all over the world.
3 - The motor is national standard copper core, universal around the world
4 - 5.5kw
