Light steel stud track drywal metal framing line machine

Perimeter Angle L-angle gypsum board steel framing forming machine

Putai Technology specializes in providing the best light gauge steel machine, light steel machine, stud and track steel machine, and drywall metal framing line machine. With years of experience, Putai Technology’s expertise in this field is unparalleled. Their light gauge steel machines are designed to increase production efficiency, reduce material costs, and maximize quality. Their light steel machines are crafted using high-end materials and the latest technology. Their stud and track steel machines ensure the highest level of accuracy and precision. And their drywall metal framing line machines are designed with safety and durability in mind. Putai Technology is your one-stop shop for all your light gauge steel machine needs.

#wallAngle

Quantity:

Light gauge steel machine,light steel machine,stud and track steel machine,drywal metal framing line machine

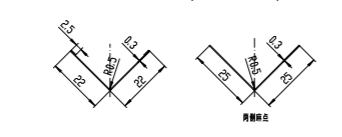

steel structure light gauge metal wall angle making machine details are as below:

Decoiler	Weight	150kg
	Steel coil ID	450~550mm
	Steel coil OD	1500mm
Roll Forming Machine	Rollers	14~18 Rows
		Material: Cr12
		Inner diameter: 40mm; Outer diameter: 90mm
		Heat treatment hardness: HRC58-62℃
	Transmission	The main drive uses worm gear transmission
	Middle Plate	Thickness is 25mm
Hydraulic System	Power	4KW
