The T-bar is a technical profile for supporting suspended ceiling panels (cell grid suspended ceiling) generally sized 60x60cm and 60x120cm. This highly technical system consists of three different profiles with length 600, 1200 called Cross Tees and 3600mm called Main Runner although many other sizes exist on the market. A galvanised sheet metal base gives structure and strength to the profile, but all that can be seen once the ceiling is assembled is a pre-painted sheet metal profile. Special machining and hooks or connectors are to be found on the profile body and the ends, which allow the profiles to be fastened to the ceiling and to each other.
More specifically, there are two main types of profile: with integral hook (integral hook) and with alloy hook (alloy hook).
The base width of the profiles is generally 24mm and 15mm, while the height varies according to the load-bearing capacities and functions that have to be guaranteed. Tianjin Putai roll forming machinery company has been manufacturing machines for T-bars for more than 30 years and is ready to help you in all stages of the project: from the design of the profile and the connector solutions to a study of the most suitable system for your production requirements.

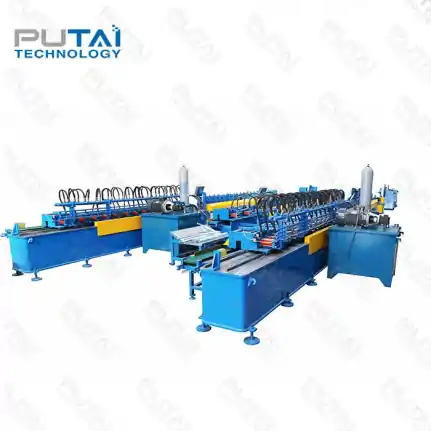

Ceiling t grid roll forming machine ppgi t bar making machine cross tee and main tee
Main T bar: equiped with inverter motor, producing in line speed: 30M per minute. Hydraulic automatic punching
and cutting machine linked
with main forming machine,punching and cutting automatically. Two heads and middle holes are punched and
cut-off at the same time after forming.
Cross T bar: equiped with both inverter and servo motor producing in line speed: 30M per minute. Main
machine with constant speed,it is traced
by the servo trace system, automatic tracing the speed of the main
machine, punching and cutting automatically. Two heads and middle hole are punched and cut-off at the
same time after forming.
We also have machines for producing purlin of C shape, W shape, M shape and others. Please find those
machines in related products.
Warranty: 1 year and life-long maintainance Installation and debugging: We will send professional engineer to
make installation and debugging,
Buyer pay our engineer each one 50 USD/day, and p rovide accommodation, food and the round-trip
ticket fee. Installation Days: about 5-7 days
Contact Me:
When you need to get the quotation, please tell me the following information:
1. Please show us the profile drawing if you have.
2.Please tell us what kind of material you need to process and the thickness, width of the material.
3.Whether you need decoiler or stacker.
4. Working speed you required.
Once get those information, we will give you quotation at once.
