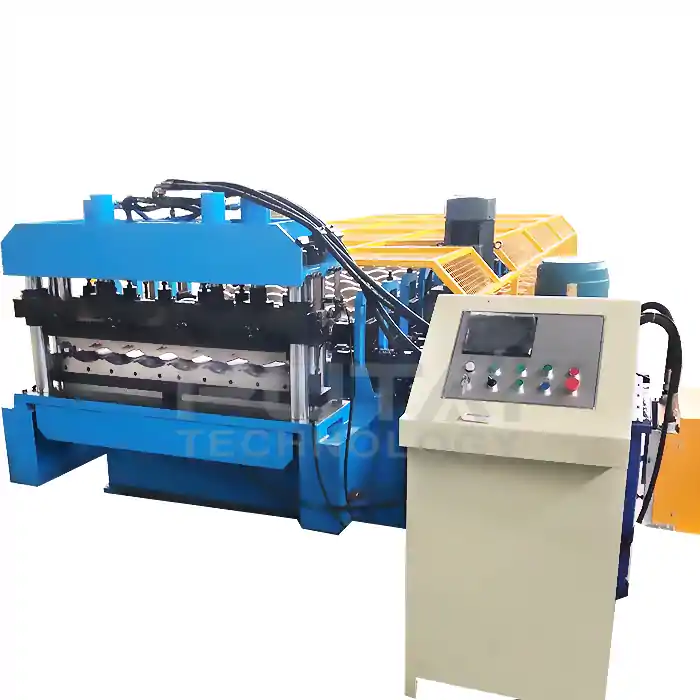

Putai high speed glazed tile roll forming machine is designed to produced the metal glazed tiles in batch automatically with high efficiency, the production speed can reach 5-8 meter per minute. The follow profile is a popular design in Kenya.
Putai high speed glazed tile roll forming machine is designed to produced the metal glazed tiles in batch
automatically with high efficiency, the production speed can reach 5-8 meter per minute.

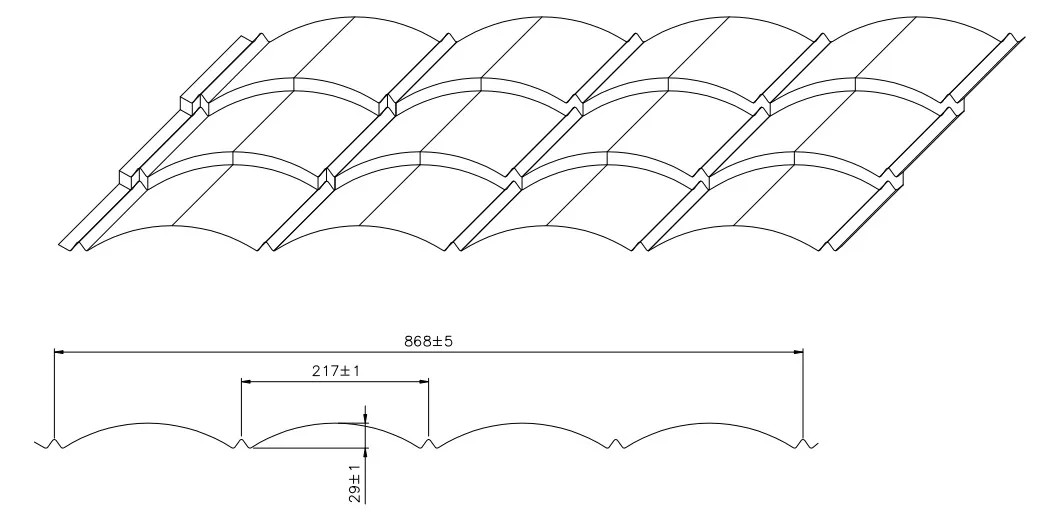

The follow profile is a popular design in Kenya.
Step tile roll forming machine can roll form aluminium or steel metro copo roofing step tiles.

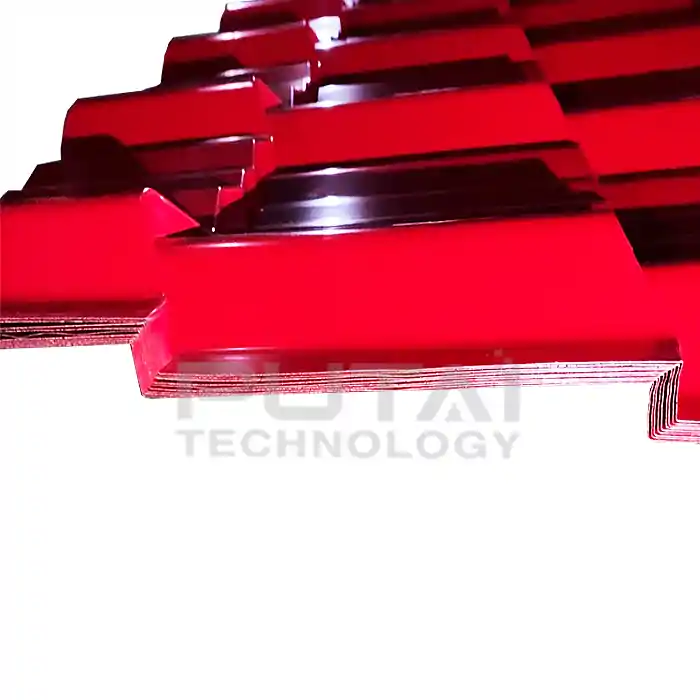

After roll formed by this corrugation machine, the surface of finished
glazed tiles are very smooth and beautiful without any scratch on the surface of glazed tile.
The production line is with fully automatic control system with PLC control system.
The parameters of length, quantity of sheets is adjustable.
Items | Metro Copo Steptile Roof Sheet Corrugation Machine | |
Material | Thickness | 0.4-0.6mm |
Coil width | 1000mm | |
Yield Strength | 235 Mpa | |
Material | Aluminium Coils, PPGI, Color Steel, GI. | |
Decoiler / Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
Coil Width | Max. 1250mm | |
I.D | 508-610mm | |
O.D | Max. 1500mm | |
Flat Sheet Rolling Mill | Forming Stations | 14 Stations ( Depend on Profiles ) |
Roller material | 45# steel coated with 0.05mm hard chrome | |
Diameter of shaft | 80mm | |
Shaft material | High grade 45# steel | |
Drive type | Gearbox transmission | |
Machine structure | Cast iron archway | |
Forming speed | 5-18m/min | |
Main power | 7.5KW | |
Step Pressing Device | Pressing Type | Hydraulic type pressing |
Pressing Mould | Cr12 Mov steel, HRC58-62 | |
Automatic Cutting Device | Cutting type | Hydraulic cutting |
Cutting Die Material | Cr12Mov steel, HRC58-62 | |
CuttingTolerance | 10m+/-1.5mm | |
Encoder | OMRON Brand | |
PLC Electrical Control Board | PLC | Delta from Taiwan |
Inverter | Delta | |
Touch screen | Delta | |
Operation type | Touching screen & Buttons | |
Hydraulic Station | Hydraulic station | Famous Chinese brand |
Hydraulic Power | 5.5KW | |
Runout Tables | Table type | Simple unpowered type |
Function | To support the finished panels | |
Our Supplier:
