roll forming machine angle
high speed wall angle roll forming machine with packing system
The high-speed cold forming machine has a longer service life and more stable operation, and the production accuracy is upgraded again on the original basis. Therefore, the production efficiency of the machine is 3 times that of the ordinary cold bending machine. The packing system is a new configuration equipment developed by our company, which reduces labor costs and increases labor safety. Increase productivity
30*30
Quantity:
high speed wall angle roll forming machine with packing system
The high-speed cold forming machine has a longer service life and more stable operation, and the production accuracy is upgraded again
on the original basis.
Therefore, the production efficiency of the machine is 3 times that of the ordinary cold bending machine.
The packing system is a new configuration equipment developed by our company, which reduces labor costs and increases labor safety.
Increase productivity
angle roll forming machine
angle steel forming machineroller of the machine
detials of roll forming machine :
1machine structure cast iron roller fixer
2 Main power7.5KW siemens motor
3 Forming stations12 stands
4 Way of drivehigh quality gear drive
5 Diameter of shaft70mm
6 Max rolling speedMax can be 80m/min
7 Thickness0.3-0.5mm galvanized steel or prepainted sheet
8 Material  width40-60mm as the angle steel size
9 Material of rollerCr12
10 Material of blade mouldCr12, quenched 58-62
11 Way of cuttinghydraulic mould cutting(non-stop to cut)
12 Length cutting tolerance+/-1.0mm
13 Hydraulic pressure16Mpa
14 Hydraulic power4kw
15 Computer Control systemPLC  control  Delta
16 Encoder measureOmron
17 Electrical requirement380V,50Hz,3Ph

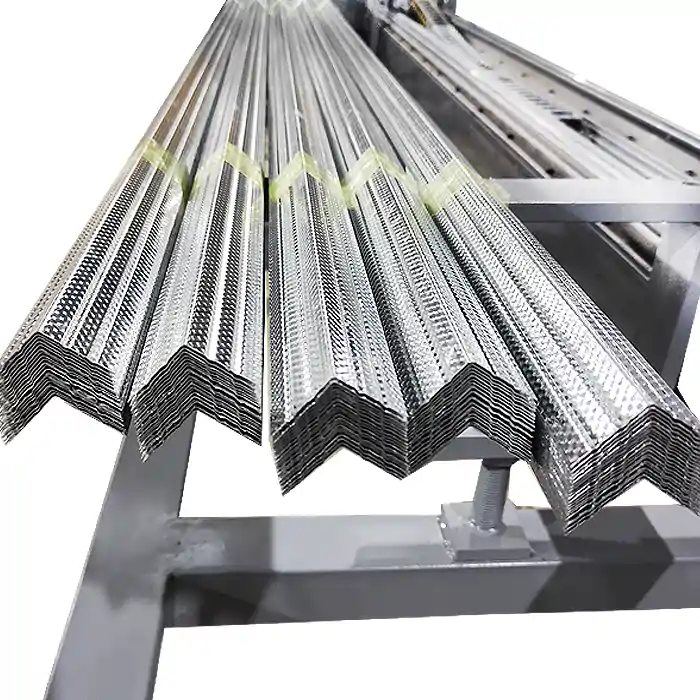

Packing system:



Our supplier:

shipping of the rollformer machinery
