HIgh Quality Standing Seam Roof Machine Standing Seam Roof Forming Machine
Putai Technology Co., Ltd is a Cold Roll Forming Machine Manufacturer
with the goal of manufacturing high-quality forming machines at reasonable prices that go beyond the basic expectations of the customer.
The outstanding technology and quality have propelled the company to become a leader in the field.
A major aspect of our success is our people, Our dynamic, innovative, and motivated personnel will provide the customer with high-quality service, technical information, and assistance.
with the goal of manufacturing high-quality forming machines at reasonable prices that go beyond the basic expectations of the customer.
The outstanding technology and quality have propelled the company to become a leader in the field.
A major aspect of our success is our people, Our dynamic, innovative, and motivated personnel will provide the customer with high-quality service, technical information, and assistance.
#roof
Quantity:
Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery
Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery
Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery Components's Material

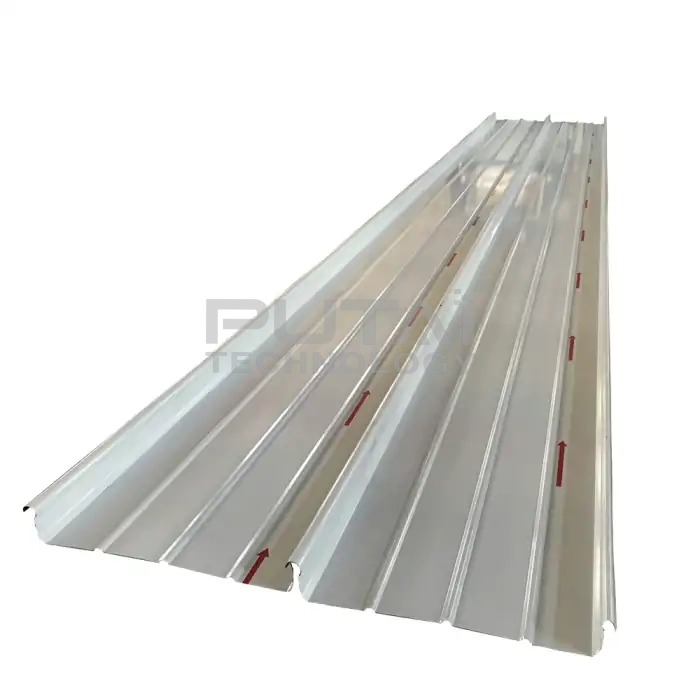

Effective Width:300/400/500mm
Feeding Width: About 472/575/675mm
Material Thickness:0.35-0.8mm
Applicable Material: PPGI
With Yield Strength:235-550Mpa
Feeding Width: About 472/575/675mm
Material Thickness:0.35-0.8mm
Applicable Material: PPGI
With Yield Strength:235-550Mpa

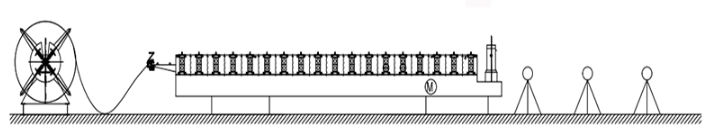

Work Flow
Decoiler→Manual Pre-Cutter→Feeding Guide Device→Roll Forming System→Hydraulic Post Cutter→Exit Rack
Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery Components

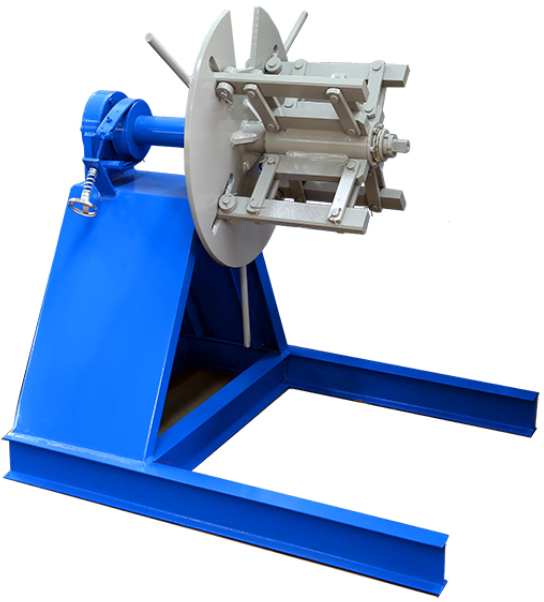

Manual Decoiler: one set
Un-Powered, Manually Control Steel Coil Inner Bore Shrinkage And Stop.
Un-Powered, Manually Control Steel Coil Inner Bore Shrinkage And Stop.
Max Feeding Width:500mm, Coil ID Range:508mm±30mm.
Capacity: Max. 3 Ton.
Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery Components

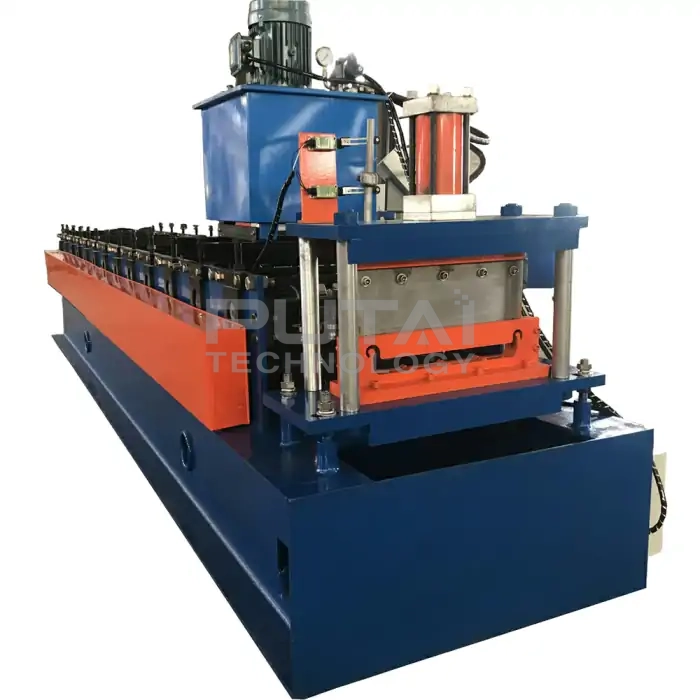

Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery ComponentsPost Hydraulic Cutting Device
Post To Cut, Stop To Cutting, Three Pieces Type Of Cutting Blade Design
Hydraulic motor:3KW
Cutter Tool Material:Cr12MoV(= SKD11 Steel),Heat treatment HRC58-62
Hydraulic motor:3KW
Cutter Tool Material:Cr12MoV(= SKD11 Steel),Heat treatment HRC58-62
With At Least One Million Times Of Cutting Life
The Cutting Power Is Provided By The Main Engine Hydraulic Station
Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery
The Cutting Power Is Provided By The Main Engine Hydraulic Station
Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery
1 | machine structure | cast iron roller fixer |
2 | Main power | 5KW siemens motor |
3 | Forming stations | 12 stands |
4 | Way of drive | high-quality gear drive |
5 | Diameter of shaft | 70mm |
6 | Max rolling speed | 20-25m/min |
7 | Thickness | 0.3-0.5mm galvanized steel or prepainted sheet |
8 | Material width | according to drawing |
9 | Material of roller | Cr12 |
10 | Material of blade mold | Cr12, quenched 58-62 |
11 | Way of cutting | hydraulic mold cutting |
12 | Length cutting tolerance | +/-1.0mm |
13 | Hydraulic pressure | 16Mpa |
14 | Hydraulic power | 4kw |
15 | Computer Control system | PLC control Delta |
16 | Encoder measure | Omron |
17 | Electrical requirement | 380V,50Hz,3Ph |
Putai Technology Factory offers high-quality Standing Seam Roof Machines, Standing Seam Roof Forming Machines, and Roof Framing Machinery. Our machines are designed to enable factory production of roofing sheets for commercial and residential buildings, with a focus on safety, performance, and durability.
Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery Components
Putai Technology Factory specializes in providing quality Standing Seam Roof Machines, Standing Seam Roof Forming Machines, roofing sheet machines, and roof framing machinery. Our factory is equipped with the latest machinery and our team of experts is dedicated to providing the highest quality products and services to our customers. At Putai Technology Factory, we are constantly innovating our products to ensure that they are in line with the latest trends in the roofing industry. Standing Seam Roof Machine, Standing Seam Roof Forming Machine, roofing sheet machine, roof framing machinery Components
