Drywall Metal System Stud and Track light gauge roll forming machine
Drywall steel partition systems and commonly known as stud and track profiles are metal channels used Mainly during the installation of false walls and ceilings. Basically, C and U shape profiles can be used in a roof truss, facade cladding, construction, and partition walls. Also, U profile and Z shape steel profiles can be used in warehouse cladding connections.
#cuChannel
Quantity:
Drywall steel partition systems and commonly known as stud and track profiles are metal channels used Mainly during the installation of false walls and ceilings. Basically, C and U shape profiles can be used in a roof truss, facade cladding, construction, and partition walls. Also, U profile and Z shape steel profiles can be used in warehouse cladding connections.

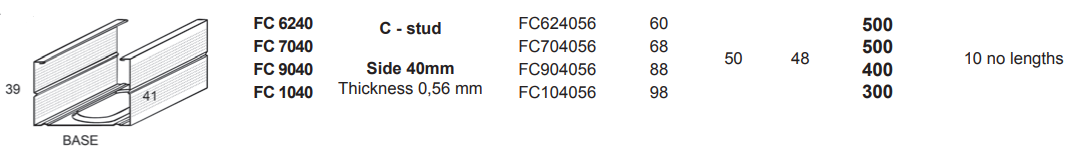

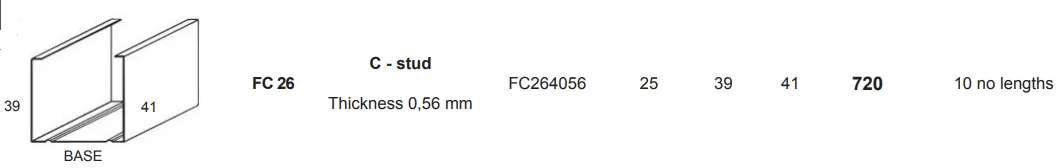

C-Shaped stud for walls

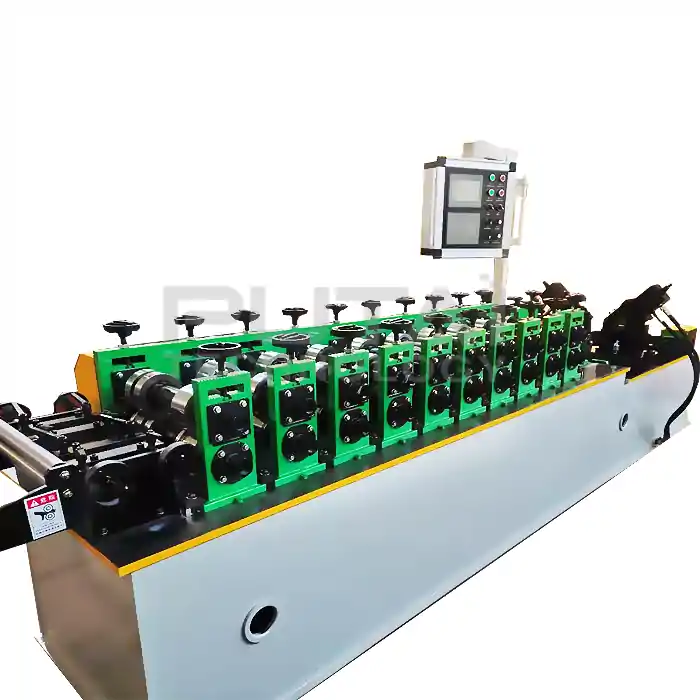

Forming machine
| Drywall Metal System Stud and Track light gauge roll forming machine Specifications | |||
Manual Un-coiler | Max Capacity: 5000kgs | ||
| Inner diameter of coil:400-600mm | |||
| Manual with brake | |||
Leveling Device | Ensure the material level and straight | ||
| The width can be adjusted | |||
Main Forming System | Width & Height & Thickness of sheet: According to Drawings | ||
| Material: GI sheet coil or Colored sheet coil | |||
| Motor Power: 5.5 kw forming system | |||
| Roller material: Cr12 | |||
| Surface of Roller: Heat treatment HRC 58-60 | |||
| Diameter of main shaft: 60mm #45 steel, heat treat modulation | |||
| Forming station: 12 stations. | |||
| Transmission: by chain and gear | |||
| Measuring accuracy: +/- 0.5 mm/M. | |||
| Arch middle plate: 30mm thickness. | |||
| Output: 8-10 Tons per shift (8 hrs.). | |||
| The machine base is assembled and welded by high-quality steel. | |||
| Cutting way: Tracking. | |||
| Oil pump station: 1set | |||
| Motor power of Oil pump station: 7.5kw with cooling system | |||
| Forced air cooling device available. | |||
| Cutting mould: 1 sets | |||
| Material of blade: CR12 with heat treatment HRC60-62. | |||
| Electrical System | Control system: HMI & PLC control panel | ||
| Power: 380V 50Hz (as per local requirement) | |||
| Run-out Table | Frame: A3 steel | ||
| Roller type | |||
| Quantity: 1 pc | |||
