A round square downspout pipe-making machine is designed for the production of the round downspout.
It is composed of Manual Decoiler, main forming, automatic cutting, and elbow bending. it is formed from cooper,
color-coated aluminum, pre-painted galvanized steel. If you want to make a complete rainwater downpipe system,
downpipe machine and elbow bending machine are required. The usage of downpipe is Collecting roof rainwater,
belonging to the falling water system components, concentrated lead to the ground below the laying of the rain pipe.
downspout elbow machine price

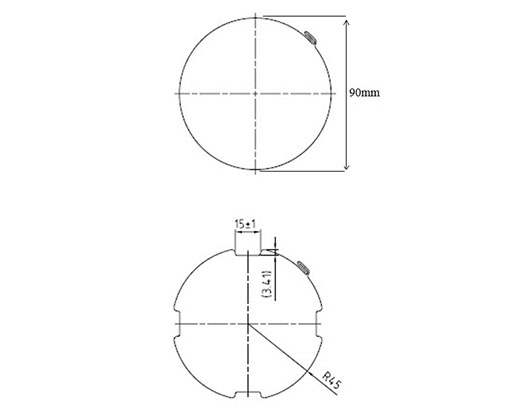

Equipment type Yx89x91mm
Expanded width 376mm
Working speed 8-10 m / min (excluding cutting time)
Pressed sheet thickness 0.4-0,6mm
Control method Panasonic PLC
Discharge rack 2 tons of manual discharge rack
Number of molding roads 18
| Roll material | Gcr15 steel after finishing, quenching HRC58-62 ° C, surface chrome treatment |
| Shaft material and shaft diameter | 45# steel finishing, shaft diameter ¢65mm |
| Host power | 5,5kw |
| Sharing | method |
| Voltage | 80V, 50HZ, 3 phase |
| Adjustable | according to customer requirements |
| Transmission mode | 1,0-inch single-row chain |
| Equipment | from Wall structure |
| Equipment color | company color |
| Equipment size | length * width * height, 8, 5, m x1, 2 m * 1..0 m |
| Length tolerance | Length tolerance |
OUR customer factory
