c purlin channel machine
Drywall steel partition system automatic roll forming machine
Putai Technology is the leading supplier of C U Purlin Channel Machines, Omega Channel Roll Forming Machines, Stud and Track Roll Forming Machines, and Ceiling Channel Roll Forming Machines. Our state-of-the-art machines are built with the latest technology, ensuring high quality, precision and efficiency. Our experienced engineers provide comprehensive customer support and our high-grade products are built to last. Putai Technology offers an extensive selection of roll forming machines for various applications that exceed industry standards. For the best roll forming machines, choose Putai Technology.
#stud&track
Quantity:
c u purlin channel machine,omega channel roll forming machine,stud and track roll forming machine,ceiling channel roll forming machine
c u purlin channel machine,omega channel roll forming machine,stud and track roll forming machine,ceiling channel roll forming machine
c u purlin channel machine,omega channel roll forming machine,stud and track roll forming machine,ceiling channel roll forming machine








c u purlin channel machine,omega channel roll forming machine,stud and track roll forming machine,ceiling channel roll forming machine

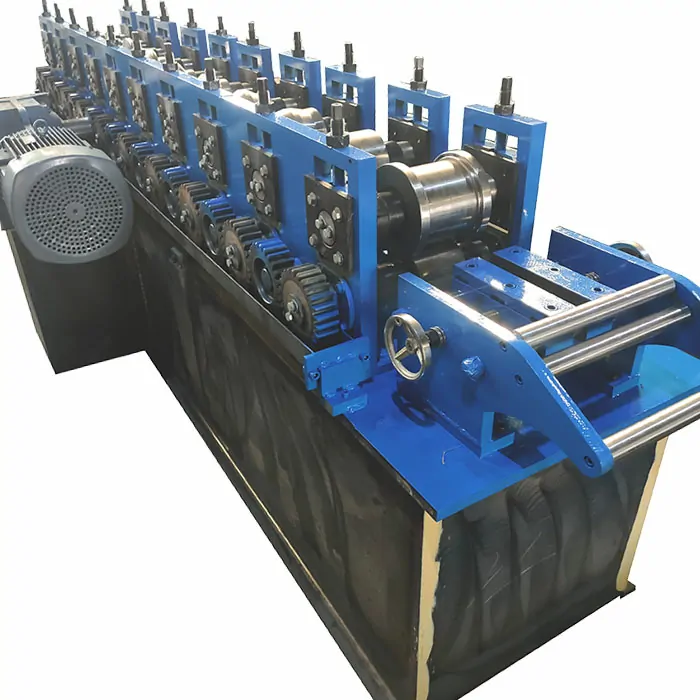

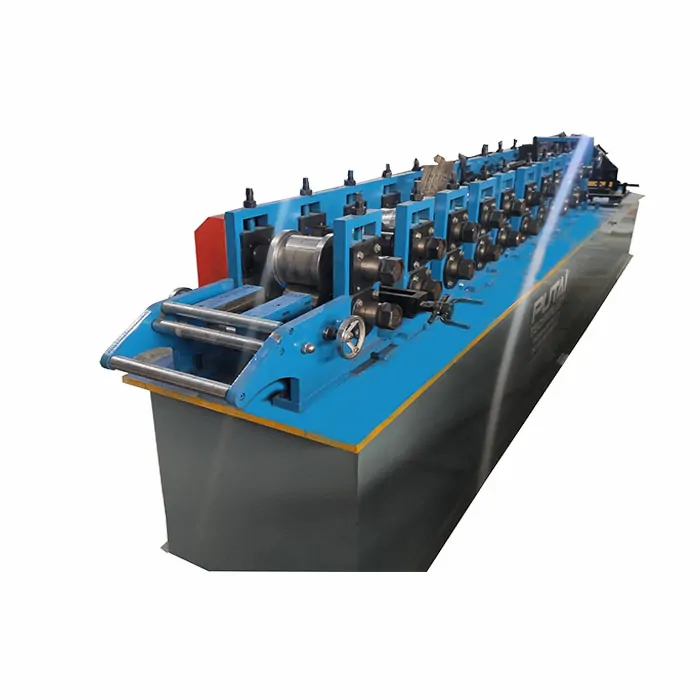

The ceiling steel profile roll forming machine also known as gypsum metal framing forming machine steel drywall, framing machine, steel ceiling framing machine, false ceiling steel structure, stud and track profile forming machine, c-shape channel roll forming machine is one of our best-selling products due to its performance and productivity.
Product Description
Drywall steel partition system automatic roll forming machine technical parameters

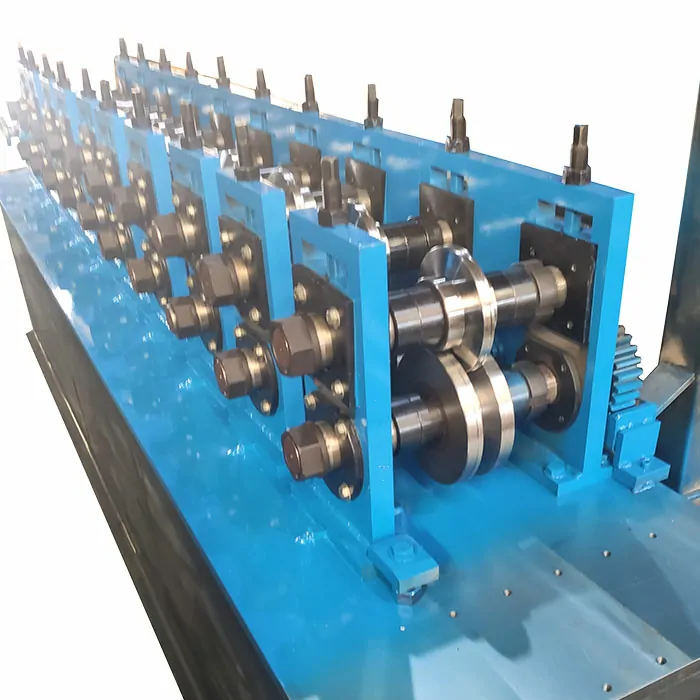

Rollers
Stand: 12 Rows
Roller’s shaft diameter:50mm
Roller adjustment range:20mm, up10mm, down 10mm
Roller material: Cr12
Shaft
50mm, the upper shaft’s length is 430mm and the lower shaft’s length is 500mm
Steel structure
35mm steel wall plate welded frame, 25mm thickness for deck plate
Total motor power
16.8kw
Main motor power
7.5kw (K77 series 7.5KW)
cutting system
Cutting blade material: Cr12, Heat treatment HRC58-60
Cut-off type
servo tracking cutting
Length tolerance
+/-2mm
PLC
Delta PLC (Taiwan Brand)
Encoder
Omron brand
Raw material thickness
0.3~0.6mm<
