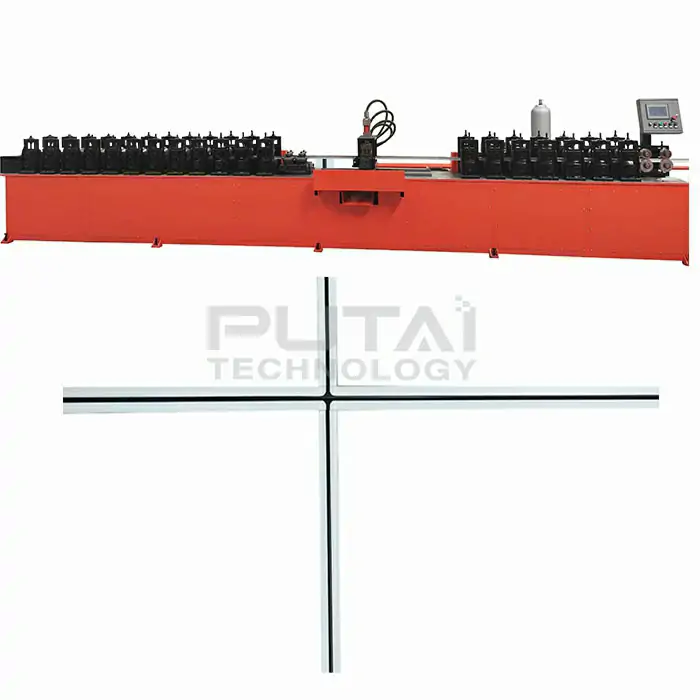

Automatic and Semi-automatic FUT cross T grid and Main Tee Grid Roll Forming Machine
Putai Technology offers a range of T-Bar Ceiling Roll Formers to meet your needs. Our Tee Bar Roll Forming Machines, Ceiling T Grid Roll Forming Machines, and T-Shaped Forming Machines are designed for maximum efficiency and accuracy. Our machines are perfect for creating high-quality T-bar ceilings for commercial and residential applications. Our state-of-the-art equipment ensures that your products are made to the best standards, and our experienced technicians will provide you with the highest level of customer service. Contact Putai Technology today to discuss how we can meet your roll forming needs.
#TeeGridFUT
Quantity:
t-bar ceiling roll former machine,tee bar roll forming machine,ceiling t grid roll forming machine,t-shaped forming machine
t-bar ceiling roll former machine,tee bar roll forming machine,ceiling t grid roll forming machine,t-shaped forming machine
t-bar ceiling roll former machine,tee bar roll forming machine,ceiling t grid roll forming machine,t-shaped forming machine
t-bar ceiling roll former machine,tee bar roll forming machine,ceiling t grid roll forming machine,t-shaped forming machine
Fut T Grid Cross Tee Ceiling T Bar Roll Forming Machine details are as below:
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness:HRC58-62 | ||
| Transmission | The main drive uses chain transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
t-bar ceiling roll former machine,tee bar roll forming machine,ceiling t grid roll forming machine,t-shaped forming machine Punching Mold Department
Specification for t-bar ceiling roll former machine,tee bar roll forming machine,ceiling t grid roll forming machine,t-shaped forming machine
| Decoiler | Weight | 150kg |
| Steel coil ID | 450~550mm | |
| Steel coil OD | 1500mm | |
| Roll Forming Machine | Rollers | 14~18 Rows |
| Material: Cr12 | ||
| Inner diameter: 40mm; Outer diameter: 90mm | ||
| Heat treatment hardness: HRC58-62 | ||
| Transmission | The main drive uses worm gear transmission | |
| Middle Plate | Thickness is 25mm | |
| Hydraulic System | Power | 7.5KW |
| Cutting System | Servo Tracking System | 2.2KW |
| Punching | Material | SKD11 |
Our metal t grid machine ceiling grid machine t bar suspended machine steel framing machine partners
Shipping Package & Container
