Putai - Downspout former of the Downspout machine

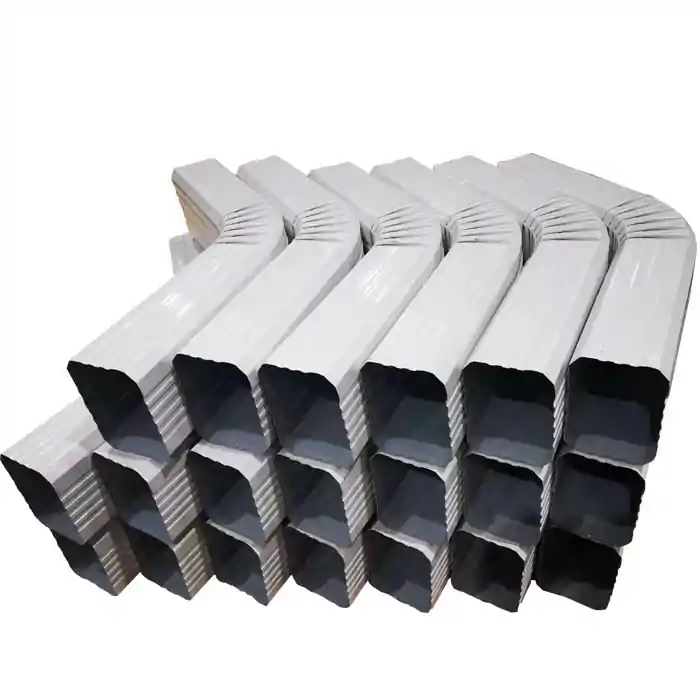

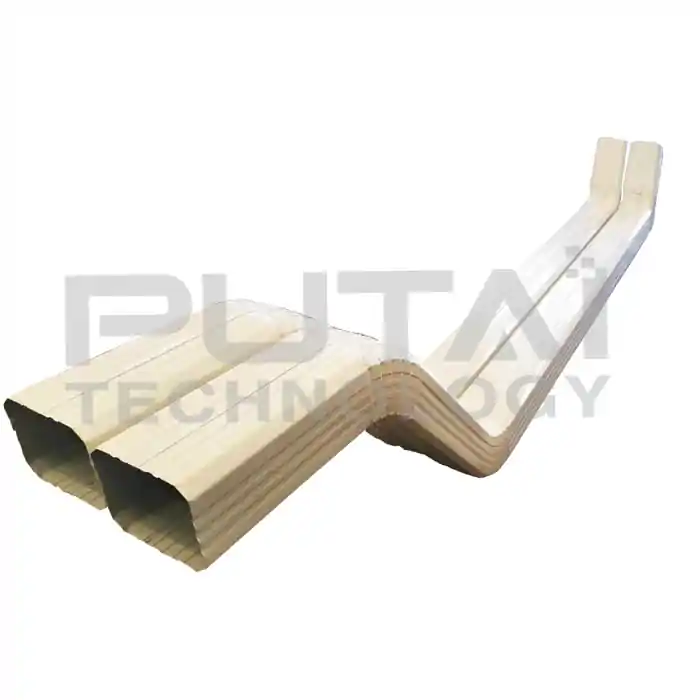

The 34 downspout and elbow roll former offer a complete package for producing high volumes of 3×4” (76.2 X 101.6mm) downspout and elbow products. These machines also have the ability to bend elbow offsets which allows the production of many custom shapes in seamless pieces.

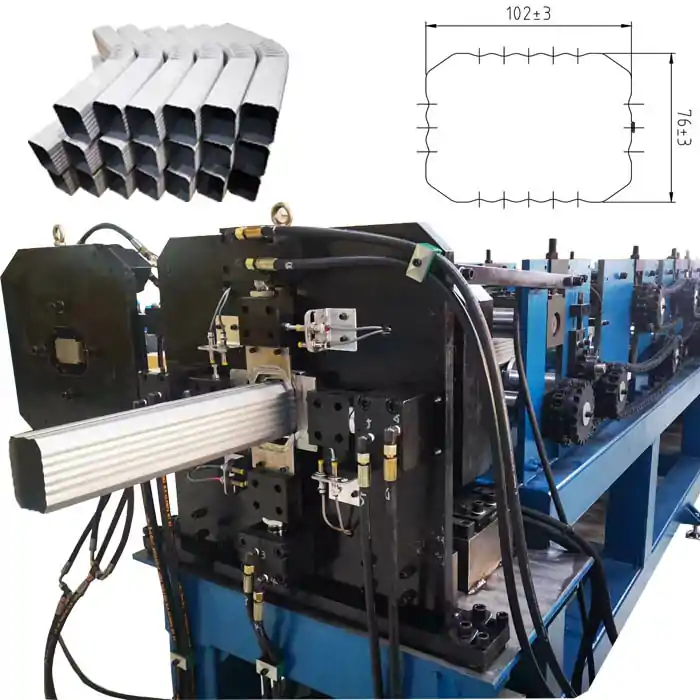

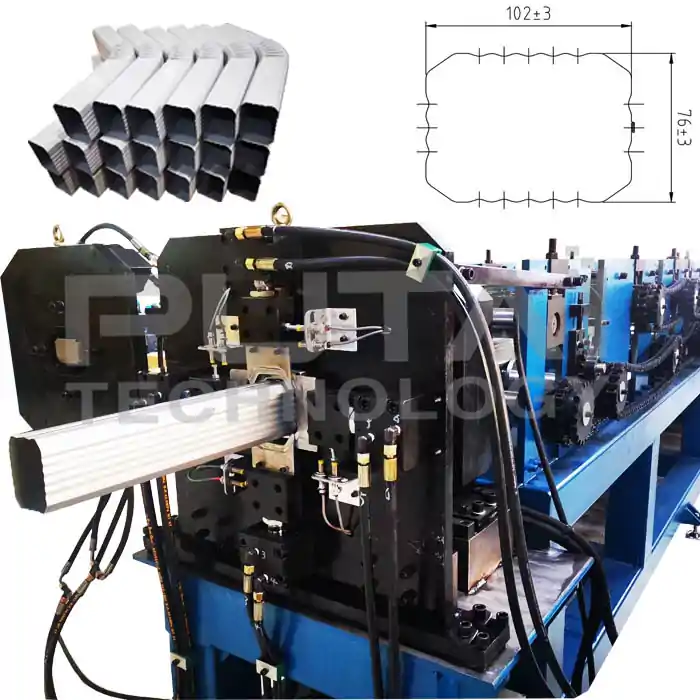

#34 3" x 4" Downspout and Elbow Roll Former

Quantity:

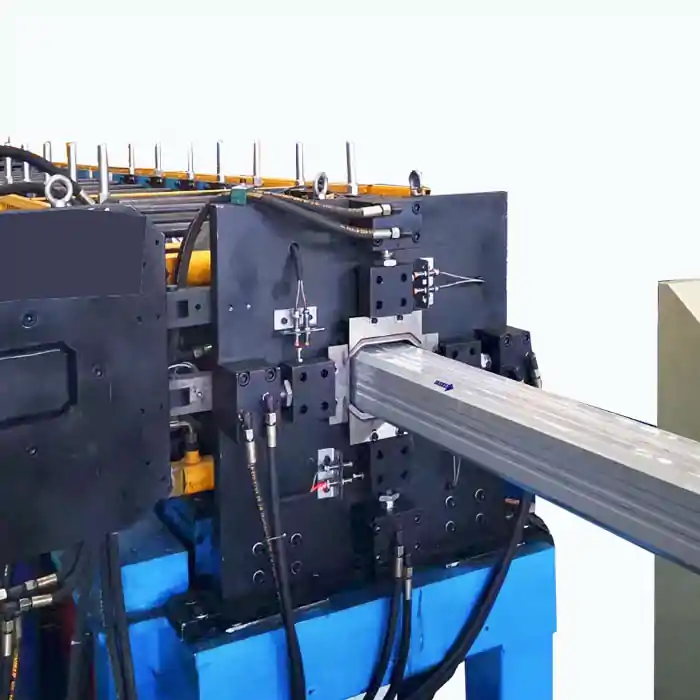

Putai - Downspout former of the Downspout machine

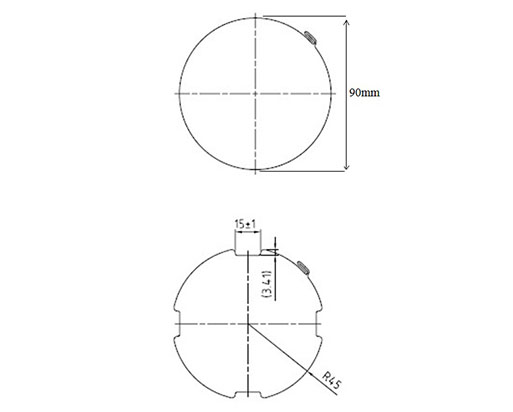

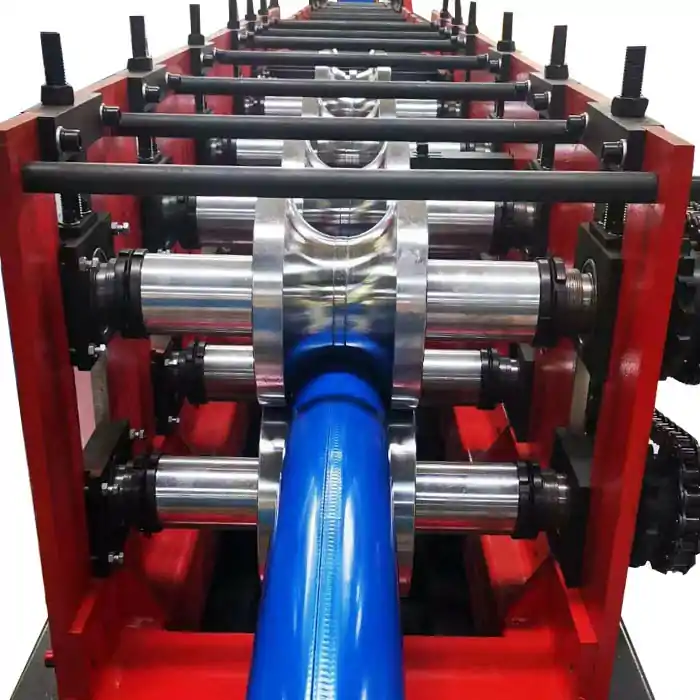

A downspout pipe-making machine is designed for the production of the round downspout.
It is composed of Manual Decoiler,main forming,automatic cutting, and elbow bending.If you want to make a complete rainwater downpipe system,
downpipe machine and elbow bending machine are required. The usage of downpipe is Collecting roof rainwater,
belonging to the falling water system components, concentrated lead to the ground below the laying of the rain pipe.
Equipment type Yx89x91mm
Expanded width 376mm
Working speed 8-10 m / min (excluding cutting time)
Pressed sheet thickness 0.4-0,6mm
Control method Panasonic PLC
Discharge rack 2 tons of manual discharge rack
Number of molding roads 18

Roll material Gcr15 steel after finishing, quenching HRC58-62 ° C, surface chrome treatment
Shaft material and shaft diameter 45# steel finishing, shaft diameter ¢65mm
Host power 5,5kw
Shearing method
Length tolerance 3m ± 1.5mm
Voltage 380V, 50HZ, 3 phase
(Adjustable according to customer requirements)
Transmission mode 1,0 inch single row chain
Equipment form Wall structure
Equipment color company color
Equipment size length * width * height, 8, 5, m x1, 2 m * 1..0 m
